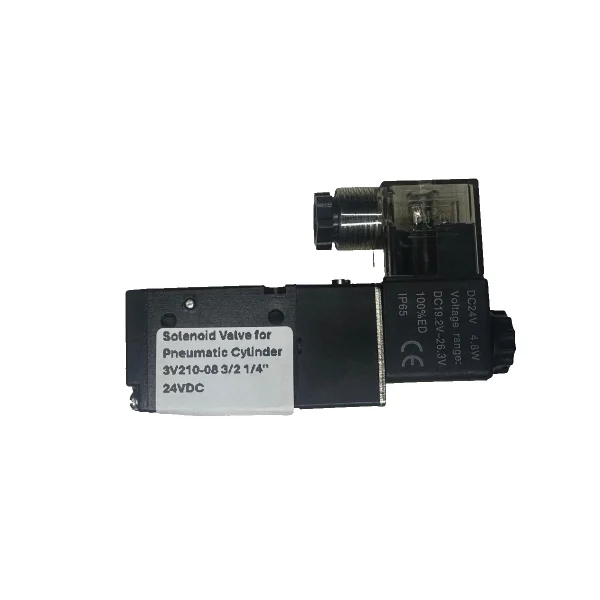

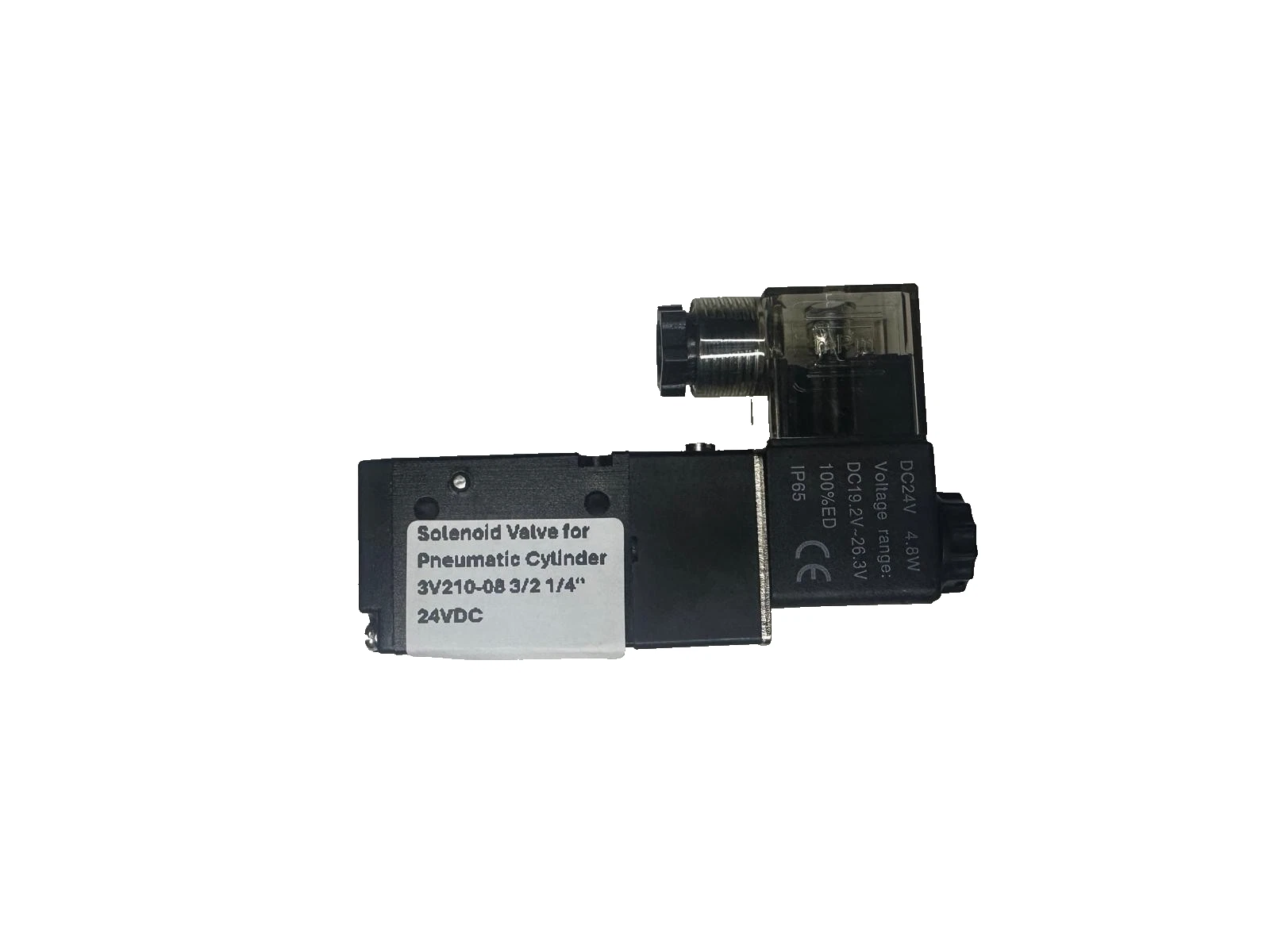

3/2 Solenoid Valve 3V210 1/4 Inch for Pneumatic Cylinder 8mm 24VDC

The 3V210 is a high-quality 3/2-way solenoid valve designed to control pneumatic cylinders with an 8mm bore or tubing. Operating at 24V DC, this valve provides reliable and precise control for on/off air flow in pneumatic systems, making it ideal for automation, manufacturing, and industrial applications.

Key Features

• Valve Type: 3/2-way (three ports, two positions) directional control valve

• Model: 3V210

• Port Size: 1/4″ NPT or BSP threaded ports for easy installation

• Operating Voltage: 24V DC (Direct Current)

• Suitable For: Pneumatic cylinders with 8mm bore or tubing

• Operation: Solenoid-actuated for quick and accurate switching

• Material: Durable aluminum alloy body with corrosion-resistant finish

• Seals: High-quality sealing for airtight operation and long service life

• Mounting: Compact design with flexible mounting options

Functionality

The 3/2-way valve controls the airflow to a pneumatic cylinder, typically used with single-acting cylinders. In one position, compressed air flows to the cylinder, causing it to extend or actuate; in the other position, the air is vented to atmosphere, allowing the cylinder to retract by spring force or external load. The solenoid coil energizes to switch the valve, enabling automated control of pneumatic movements.

Technical Specifications

• Port Size: 1/4″

• Voltage: 24V DC

• Power Consumption: Typically 4-6 Watts (depending on coil)

• Operating Pressure Range: 0.15 to 0.8 MPa (22 to 116 PSI)

• Ambient Temperature Range: -10 °C to +50 °C (14 °F to 122 °F)

• Response Time: Less than 20 milliseconds

• Medium: Filtered, clean compressed air, lubricated or non-lubricated

Applications

• Automation systems using single-acting pneumatic cylinders

• Control of pneumatic tools and actuators

• Robotics and material handling equipment

• Packaging and assembly machinery

• Industrial processes requiring reliable pneumatic switching

Advantages

• Fast and Reliable Switching – Ensures smooth and accurate pneumatic actuation

• Durable Construction – Aluminum body and quality seals for long-term use

• Energy Efficient – Low power consumption for 24V DC control systems

• Easy Installation – Standardized port sizes and flexible mounting
