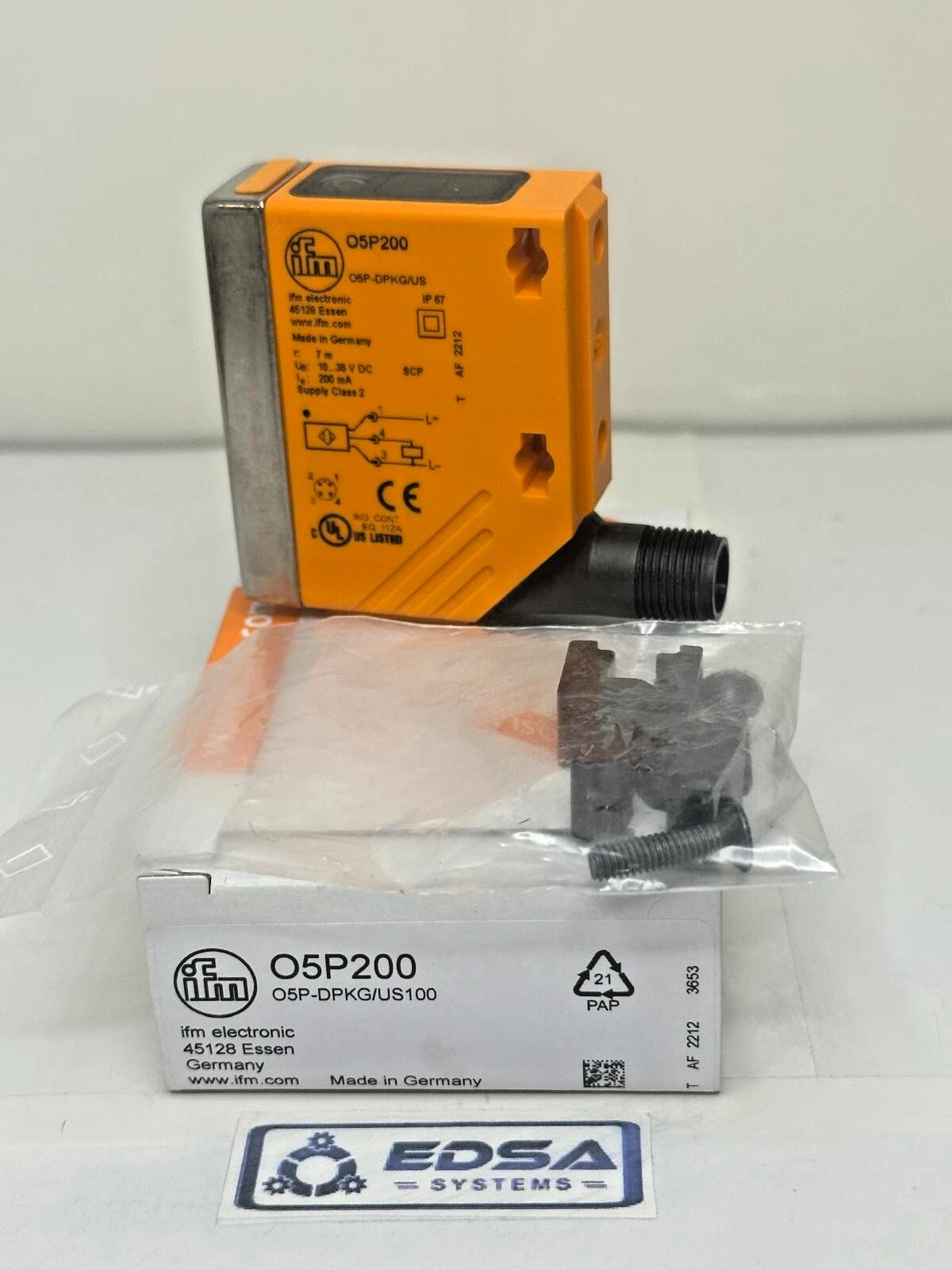

Ifm electronic Retro Reflexionssensor O5P200 O5P-DPKG/US100

Ifm electronic Retro Reflexionssensor O5P200 O5P-DPKG/US100

📘 Key Specifications

Model & Application

• Model: O5P200 (O5P-DPKG/US100)

• Type: Retro-reflective photoelectric sensor with polarisation filter

• Application: Object detection with reflectors; suitable for transparent and reflective materials

Detection Range & Accuracy

• Sensing distance: Up to 6 m (with standard reflector E20005)

• Light source: Red light, visible

• Adjustment: Potentiometer for sensitivity

Output & Electrical Specs

• Output function: Light-on/dark-on selectable

• Output type: PNP transistor

• Switching frequency: Up to 250 Hz

Electrical Ratings

• Operating voltage: 10–30 V DC

• Current consumption: < 35 mA

• Max output current: 100 mA

• Short-circuit and overload protection: Integrated

Indicators & Settings

• LED indicators:

  • Yellow (output status)

  • Green (power on)

• Teach-in: Manual adjustment via potentiometer

Housing & Mounting

• Housing material: Plastic, robust M18 rectangular housing

• Lens material: PMMA

• Connection: M12 connector (4-pin)

• Protection class: IP67

Environmental Conditions

• Ambient temperature: –25 °C to +60 °C

• Storage temperature: –40 °C to +70 °C

• Shock and vibration resistance: IEC standard compliant

Certifications

• CE, cULus, EAC, RoHS compliant

✅ Summary Table

🛠 Typical Usage & Accessories

• Ideal for applications in material handling, packaging, automated conveyors, and transparent object detection

• Suitable for harsh industrial environments requiring robust sensing performance

• Packaging lines – to detect boxes, bags, or labels

• Conveyor systems – to count or verify product presence

• Assembly lines – to detect small components or verify placement

• Material handling systems – for position control or object presence

• Robotics – as part of a sensor array for object detection and avoidance
