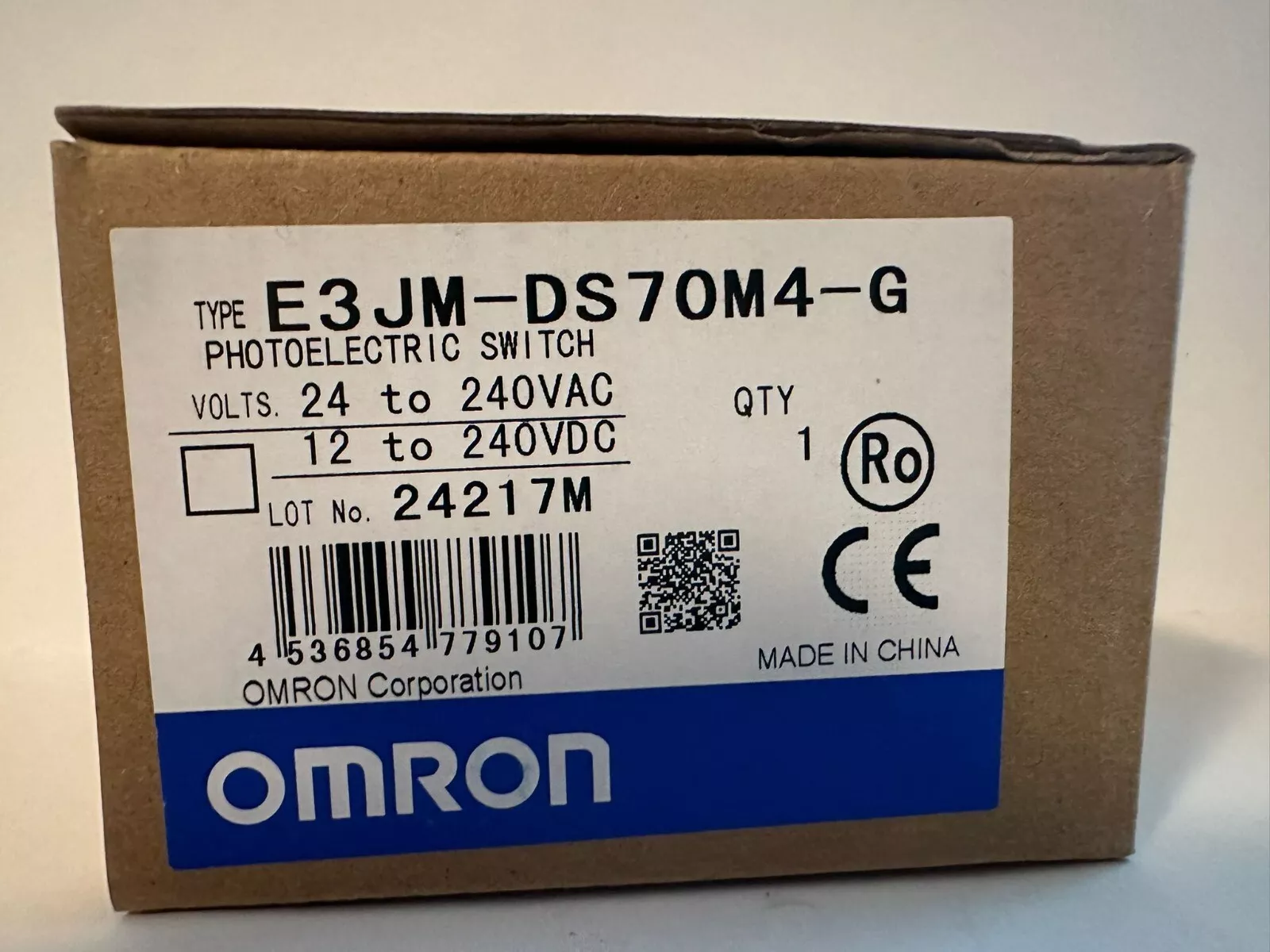

Omron E3JM-DS70M4-G

Omron E3JM-DS70M4-G

📌 Key Features

• Type & Sensing Method

  • Built-in power, diffuse-reflective photoelectric sensor

  • Infrared LED light source (940–950 nm)

• Sensing Range & Accuracy

  • Detects white paper (200 × 200 mm) at up to 700 mm

  • Differential travel ≤ 20% of sensing distance

• Power Supply

  • Operates on 12–240 VDC or 24–240 VAC (±10%)

  • Low power consumption: ~2 W

• Control Output & Response

  • SPDT relay capable of switching 3 A at 250 VAC (cos φ = 1)

  • Supports Light‑ON and Dark‑ON modes via a built‑in switch

  • Fast response time: ≤ 30 ms

• Durability & Reliability

  • Electrical life: ≥ 100,000 cycles; Mechanical life: ≥ 50 million cycles

  • Rugged: IP66-rated housing, robust to vibration and shock

• Environmental Specifications

  • Operating temperature: –25 °C to 55 °C; storage up to 70 °C

  • Humidity: 45–85% (operating), up to 95% (storage), no condensation

  • Ambient light tolerance up to 3,000 lx

• Physical Specs

  • Compact square design: ~65 × 75 × 25 mm, ~160 g

  • ABS housing, methacrylate lens, polycarbonate cover, iron bracket included

• Installation

  • Conduit: PG13.5 threaded

  • Terminal block wiring, single-turn sensitivity adjustment, red LED status indicator

  • Includes mounting bracket, nuts, terminal cover, and connection hardware

⚙️ Summary of Specs

🔧 In Context

The E3JM‑DS70M4‑G is an industrial-grade sensor ideal for detecting objects at medium distances (e.g., packaging, manufacturing). With its broad voltage tolerance and sturdy IP66 protection, it’s well-suited for rugged environments. The selectable light/dark modes make integration flexible, while single-turn sensitivity ensures quick calibration.
