Phoenix Contact ME3780‑1 Motor Control Module
25,00 € inkl.MwSt

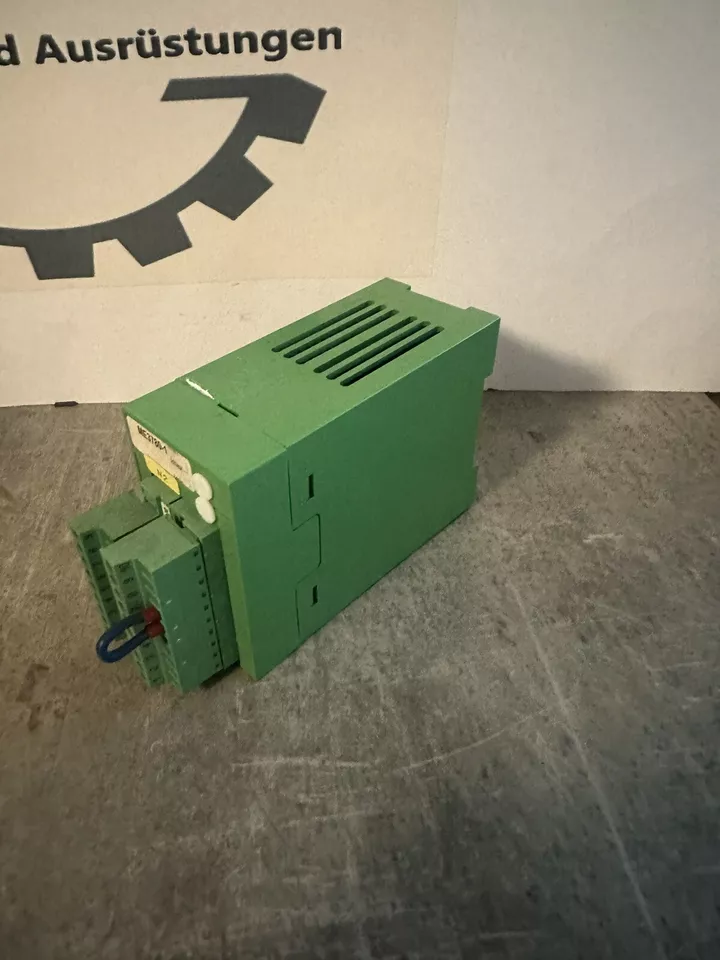

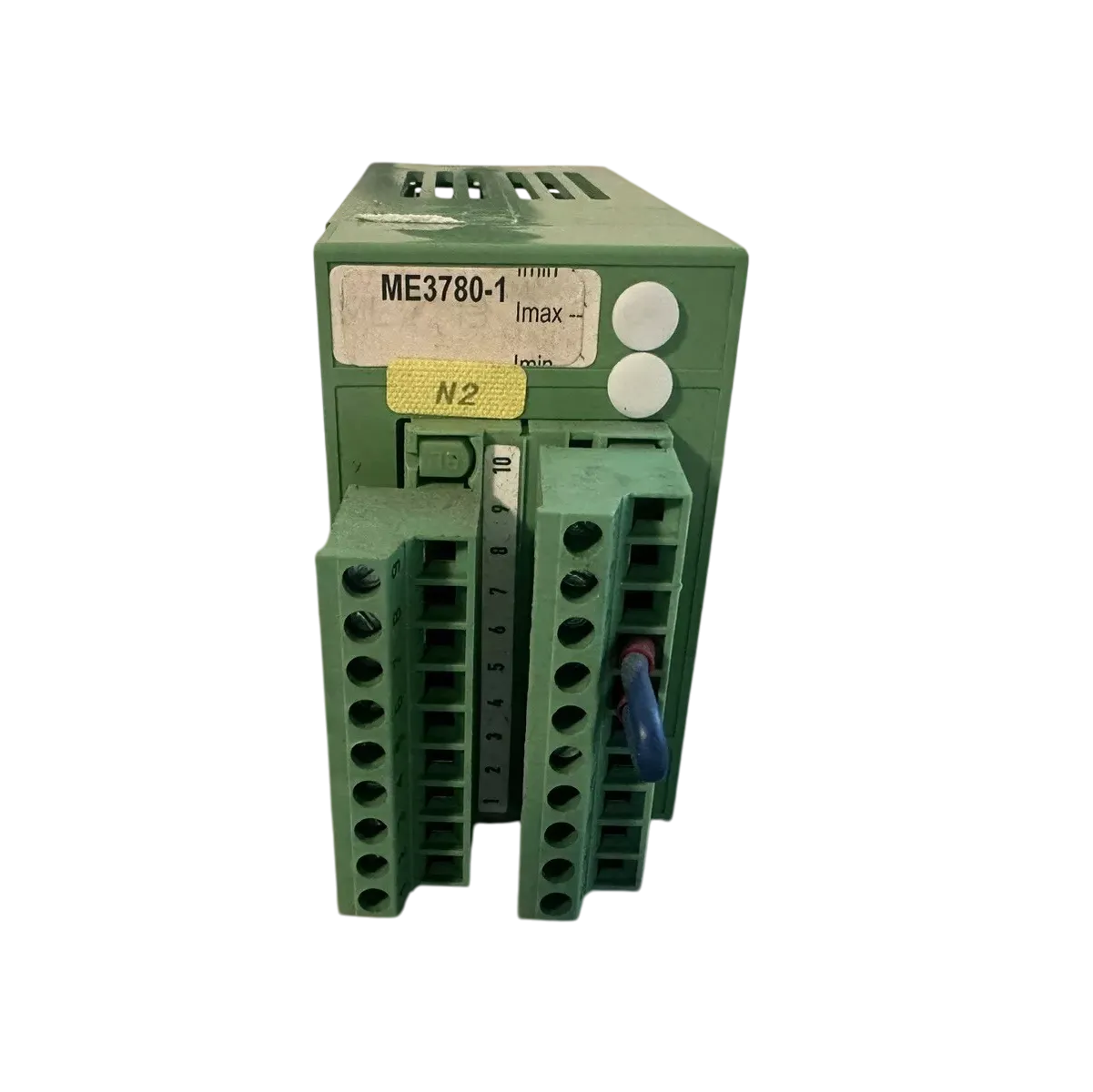

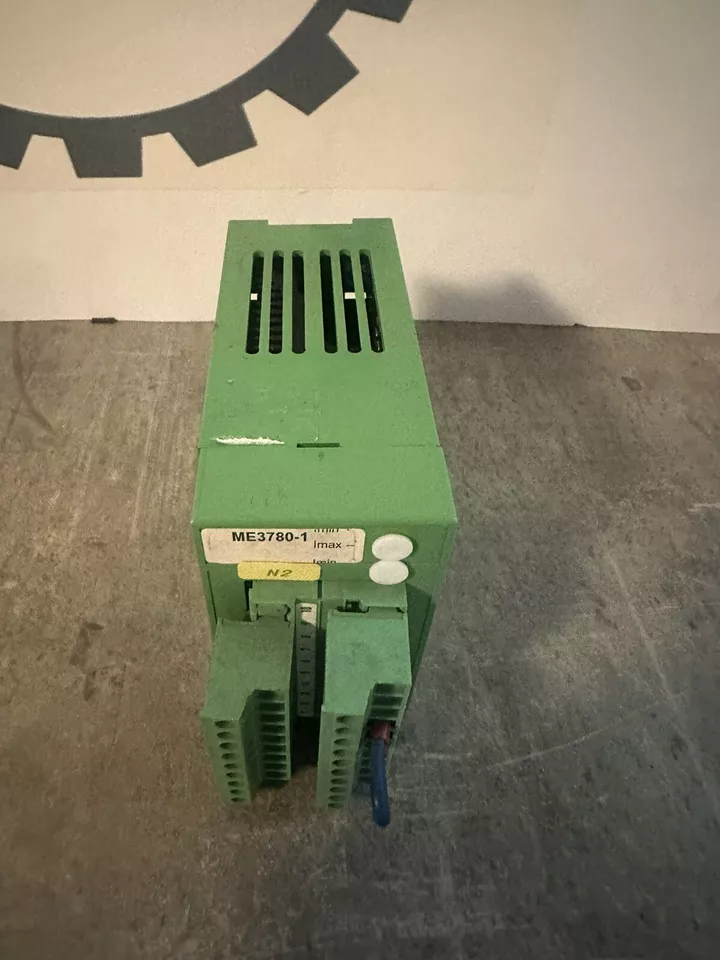

Phoenix Contact ME3780‑1 Motor Control Module (with EG45 Junction Box)
A compact motor control module designed to manage electric motors via an external control system. Ideal for integration in automation panels and industrial machinery applications.
3 in stock
Phoenix Contact ME3780‑1 Motor Control Module
Overview
-
Model: ME3780‑1
-
Accessory Housing: EG 45 (ABS green, DIN-rail mountable)
-
Function: Motor control module—used to control motors via switching or relay outputs
🧰 Module & Housing Details
ME3780‑1 Motor Control Module
-
Designed for mounting inside an EG 45 ABS enclosure
-
Used to manage and switch motor loads in control cabinets
-
Supplied without module specifications—likely includes relay or solid-state switching components

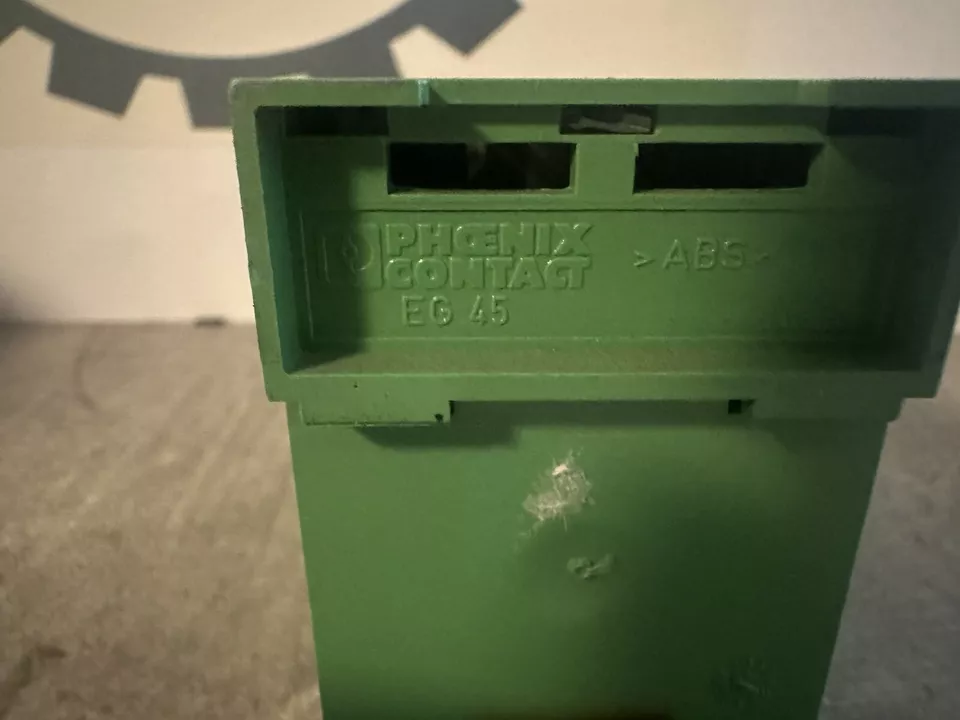

EG 45 Housing (Mounting Base)
-
Material: ABS plastic (green, RAL 6021)
-
Dimensions: 45 mm wide × 75 mm high
-
DIN-Rail Compatible: Snap-on foot for 35 mm rail
-
Protection Rating: IP20
-
PCB Capacity: Supports PCB thickness of 1.4–1.8 mm
-
Flammability Class: UL 94 HB
-
Ambient Use Range:
-
Operation: –40 °C to +80 °C (depending on power dissipation)
-
Assembly: –5 °C to +80 °C
-
Storage: –40 °C to +55 °C
-
-
Weight: ~53 g per housing half
-
Approvals: UL Recognized (ID E240868); RoHS & REACH compliant
🛠 Features & Benefits
-
Compact Form Factor: 45 mm width—ideal for control panels with space constraints
-
Secure Mounting: Snap-on rail foot ensures stable installation
-
Serviceable Design: Component housing with cover allows easy module access
-
Industrial Usability: Suitable for standard PCBs and relay modules
✅ Summary Table
| Component | Specification |
|---|---|
| Module | ME3780‑1 Motor Control Module (in EG45) |
| Housing | EG 45 ABS enclosure, green, DIN‑rail mount |
| Housing Size | 45 × 75 mm (WxH), PCB depth 1.4–1.8 mm |
| Material | ABS (UL 94 HB) |
| Ambient Temp | –40 °C → +80 °C (operating), –40 °C → +55 °C (storage) |
| Protection | IP20 |
| Mounting | 35 mm DIN rail |
| Weight | ~53 g (housing half) |
| Approvals | UL Recognized, RoHS/REACH compliant |
Phoenix Contact ME3780‑1 Motor Control Module (with EG 45 Housing)
🔌 Module & Assembly
-
Module: ME3780‑1 – compact motor control unit designed for mounting inside an EG 45 enclosure.
-
Housing: EG 45 mounting base (ABS, green) – a snap-on DIN-rail enclosure housing PCBs up to 1.8 mm thick, width 45 mm, height 75 mm.
-
Enclosure material: ABS plastic, UL 94 HB rated, green (approx. RAL 6021).
-
Protection level: IP20 front; suitable for standard industrial control panels.
📏 Dimensions & Mounting
-
Enclosure dimensions:
-
Width: 45 mm
-
Height: 75 mm
-
PCB depth support: 1.4–1.8 mm docs.rs-online.com+14phoenixcontact.com+14surplusselect.com+14
-
-
Mounting: Snap-on DIN rail (35 mm), tool-free installation.
-
Temperature limits (housing):
-
Operation: –40 °C to +80 °C (depending on usage load)
-
Assembly: –5 °C to +80 °C; Storage: –40 °C to +55 °C datasheet.octopart.com+2phoenixcontact.com+2phoenixcontact.com+2phoenixcontact.com+3phoenixcontact.com+3phoenixcontact.com+3
-
-
Weight: approx. 53 g per housing half
✅ Key Features & Usage
-
Designed for motor load switching/control within a modular, compact DIN-rail enclosure.
-
Ideal for industrial automation panels where footprint is limited.
-
Snap-in housing supports secure mounting, quick servicing, and pluggable PCB modules.
-
Enclosure is UL-recognized and RoHS/REACH compliant for industrial installations.
-
Useful for retrofits, OEM control systems, or anywhere a sealed motor control module is beneficial.
🧩 Optional Configurations
-
Compatible with various upper cover options: closed, multi-connection versions, or test-opening enabled variants.
-
Supports PCB header, coding profiles, and terminal block accessories (sold separately).
