Siemens SITOP PSU100C 6EP1332-5BA00

Siemens SITOP PSU100C Power Supply 6EP1332-5BA00

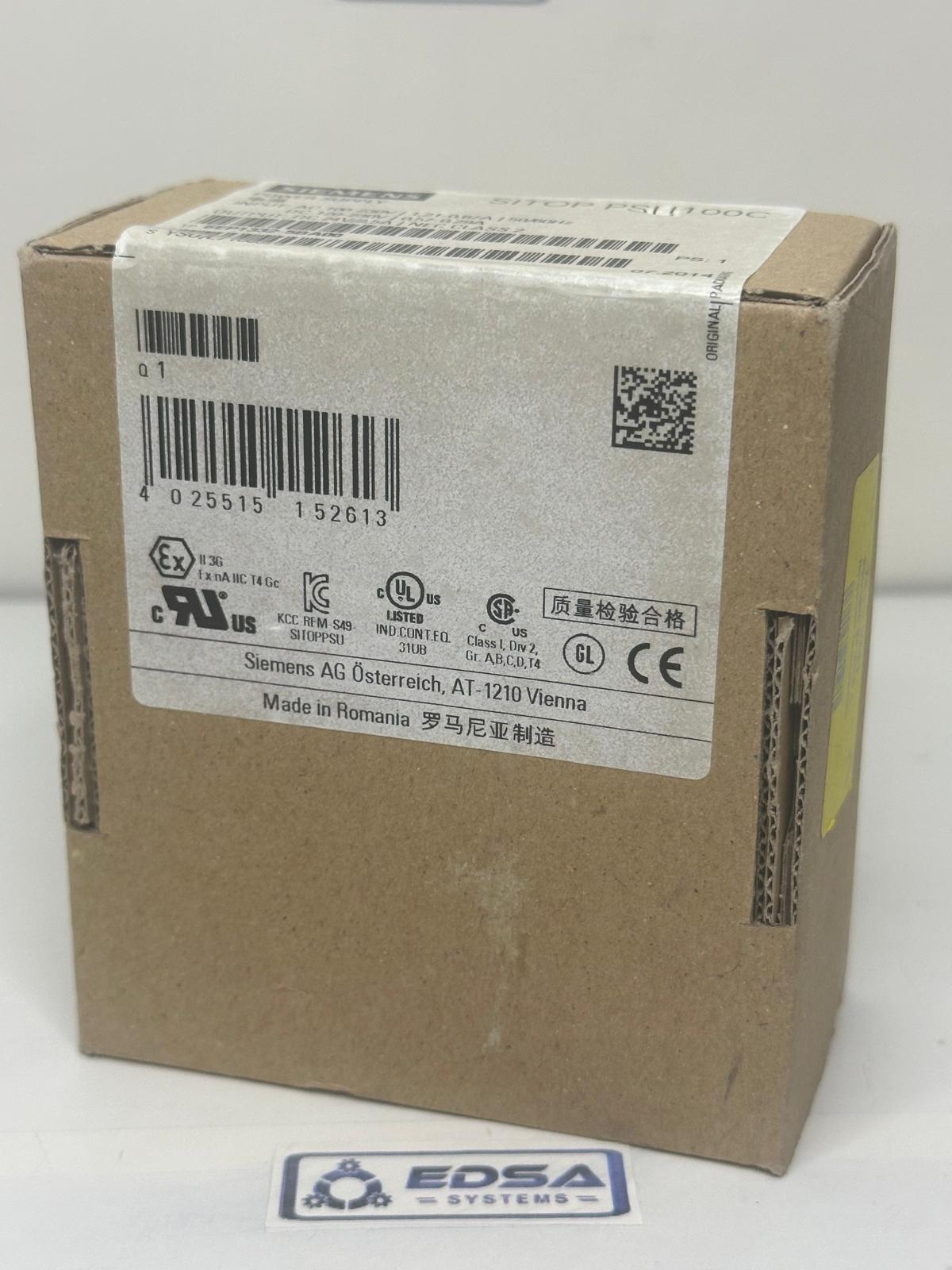

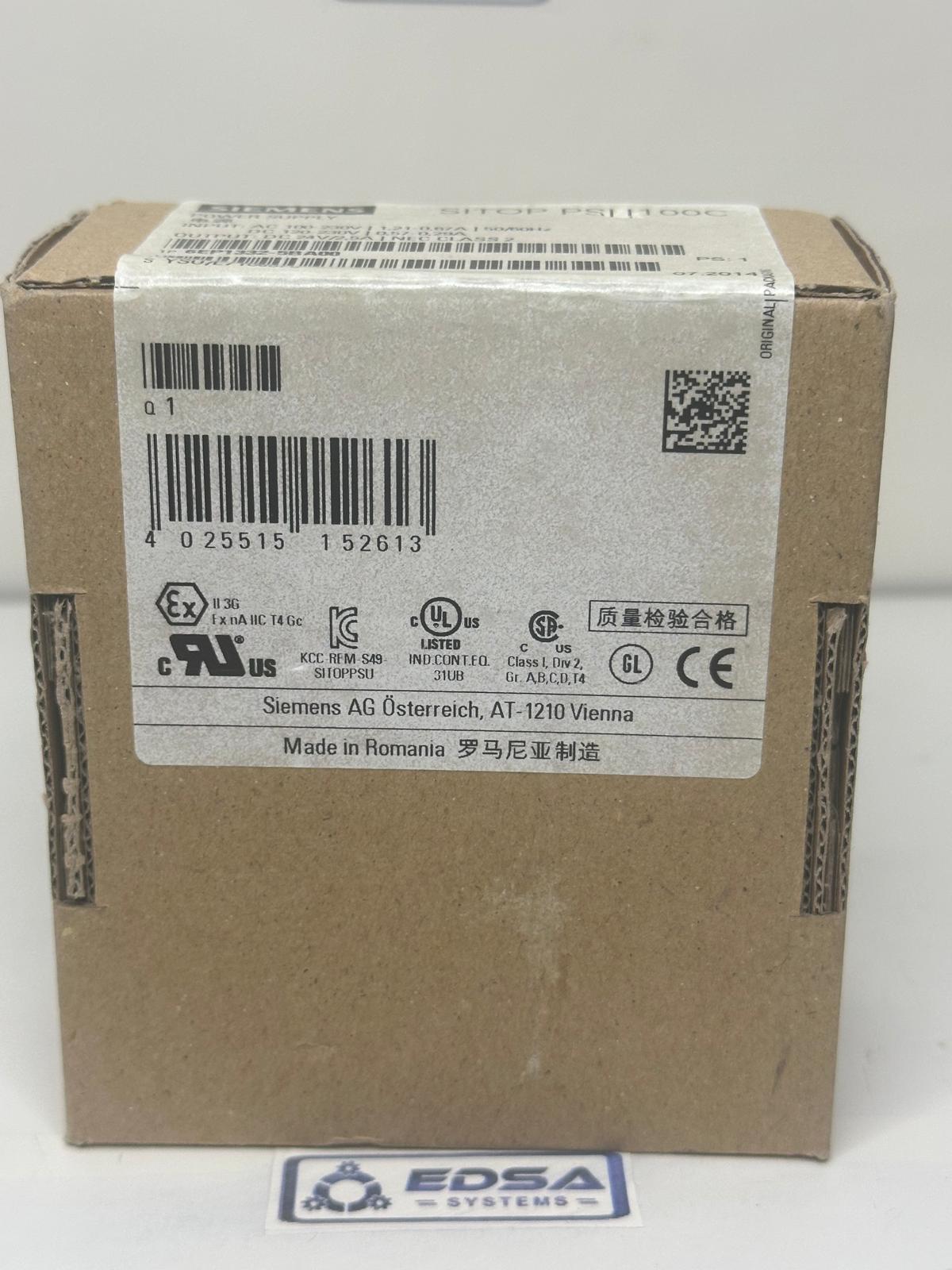

A new, unused, and undamaged item in its original, unopened packaging (where packaging is applicable). Supplied in Siemens original factory-sealed packaging unless otherwise noted.

Here’s a detailed overview of the Siemens SITOP PSU100C compact power supply, model 6EP1332-5BA00, optimized for space-saving applications in control panels and automation systems:

📘 Key Specifications

Model & Application

• Model: 6EP1332-5BA00

• Series: SITOP PSU100C

• Type: Compact DIN rail power supply

• Application: Reliable 24 V DC supply for industrial automation, sensors, PLCs, and HMI components

Electrical Characteristics

• Input voltage: 85–264 V AC or 110–300 V DC (wide-range input)

• Input frequency: 47–63 Hz

• Output voltage: 24 V DC (stabilized)

• Output current: 2.5 A

• Output power: 60 W

Protection & Efficiency

• Short-circuit protection: Yes (automatic recovery)

• Overload protection: Yes (current-limited)

• Efficiency: Approx. 87%

• MTBF (IEC 61709): >500,000 hours

Mechanical Features

• Mounting type: DIN rail (EN 60715)

• Cooling: Natural air convection

• Connection type: Screw terminals

• Housing: Plastic (compact and robust)

Dimensions & Weight

• Dimensions: 32.5 × 90 × 100 mm (W×H×D)

• Weight: ~0.22 kg

Environmental Conditions

• Operating temperature: –20 °C to +70 °C (derating >+55 °C)

• Humidity: Up to 95% RH, non-condensing

• Storage temperature: –40 °C to +85 °C

• Vibration/shock: According to EN 60068-2

Certifications

• CE, UL, cULus, CB Scheme, EN 60950-1, RoHS, GL (marine)

✅ Summary Table

🛠 Typical Usage & Accessories

• Ideal for compact control cabinets, panel builders, OEM equipment, and small PLC systems

• Commonly used in machine building, building automation, and industrial electronics

• Compatible with Siemens S7-1200, ET200 systems, and general-purpose 24 V DC loads
