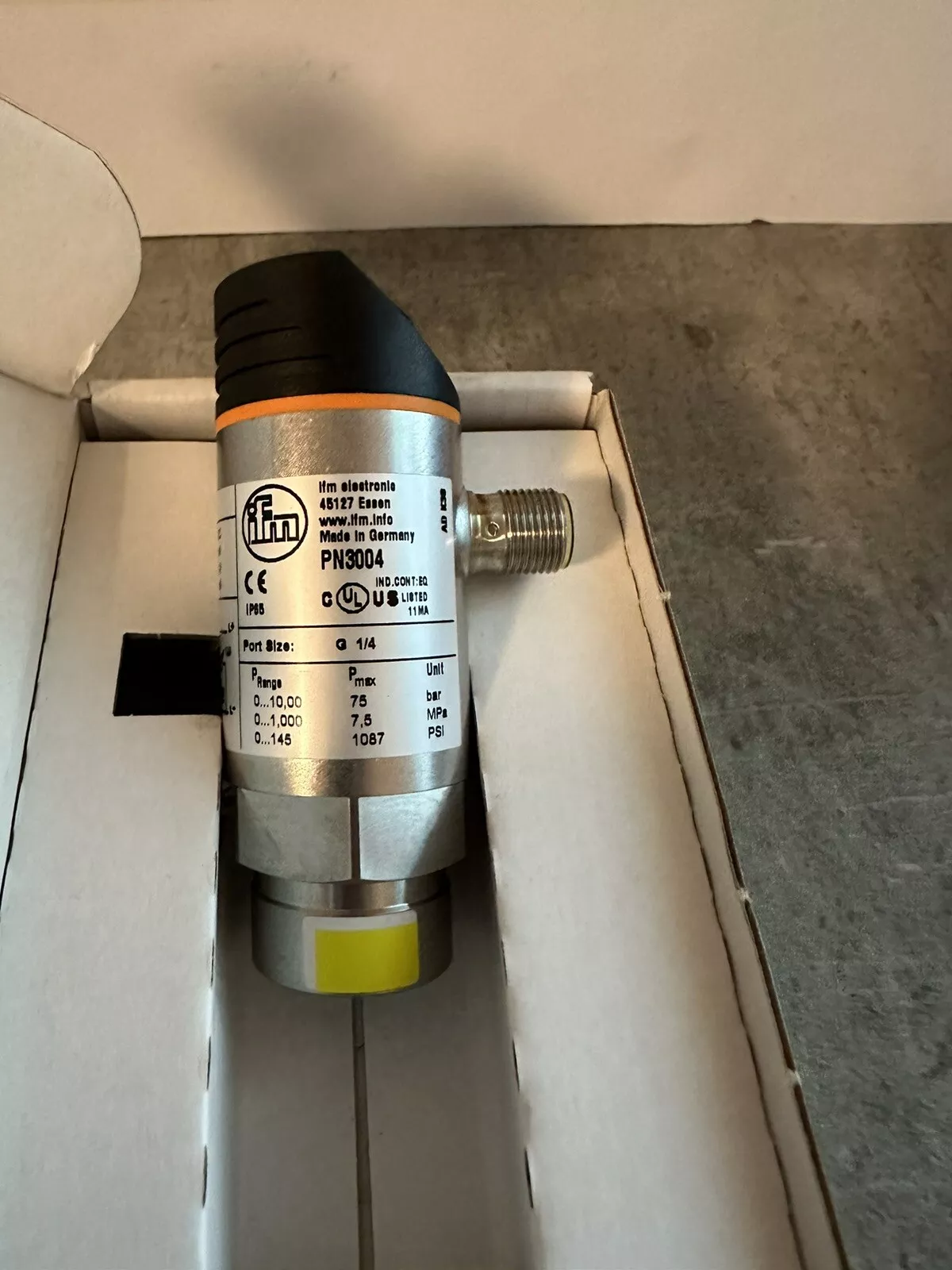

IFM PN3004 Pressure Sensor – Overview

Model: PN3004 (PN‑010‑RBR14‑MFPKG/US/V)
Brand: IFM
Type: Electronic pressure sensor with integrated display

 Key Technical Specifications

• Measuring Range: –1 to +10 bar (vacuum to overpressure)

• Output Configuration:

  • 1x PNP switching output

  • 1x analog output (configurable 4–20 mA or 0–10 V)

• Display: 4-digit LED display with status indicators

• Accuracy:

  • Switching: ±0.5% of span

  • Analog: ≤ ±0.25% BFSL

• Repeatability: High, with minimal hysteresis

• Response Time: Fast signal processing for dynamic systems

 Mechanical & Electrical Details

• Process Connection: G¼″ internal thread

• Electrical Connection: Standard M12 connector

• Materials (Wetted Parts): Stainless steel, ceramic sensor element, FKM seals

• Operating Voltage: 18–36 V DC

• Current Consumption: < 50 mA

• Protection Class: IP65

• Operating Temperature: –25 °C to +80 °C

• Burst Pressure Rating: 150 bar

 Typical Applications

• Pneumatics and hydraulics

• Machine tools and OEM systems

• Industrial automation and plant monitoring

• Any system requiring real-time display plus dual output feedback

Measurement & Electrical Characteristics

• Measuring Range: –1 to +10 bar (vacuum to overpressure)

• Setpoint Range:

  • SP (Setpoint): –0.9 to 10 bar

  • RP (Reset Point): –0.95 to 9.95 bar

• Resolution: 0.05 bar / 1 psi

• Output 1: PNP switching output (programmable NO/NC)

• Output 2: Analog output (configurable 4–20 mA or 0–10 V)

• Analog Load Resistance:

  • Current output: max 500 Ω

  • Voltage output: min 2000 Ω

• Switching Frequency: Max. 170 Hz

• Switching Current Capacity: Max. 250 mA

• Voltage Supply: 18–36 V DC (SELV/PELV compliant)

• Current Consumption: < 50 mA

• Electrical Protection: Short-circuit protection, reverse polarity, overload, pulsed output

 Accuracy & Stability

• Switch Point Accuracy: ≤ ±0.5% of full span

• Analog Output Accuracy:

  • ≤ ±0.25% BFSL

  • ≤ ±0.5% of full scale (LS)

• Repeatability: ≤ ±0.1% of full span

• Long-Term Drift: ≤ ±0.05% of full span per 6 months

• Temperature Coefficient: ≤ ±0.2% of span per 10°C for both zero and span

• Response Time:

  • Analog Output: ≤ 3 ms

  • Programmable switching delay: 0 to 50 seconds

 Mechanical & Environmental Data

• Process Connection: G 1/4″ internal thread (BSPP)

• Connector: M12 A-coded, 4-pin

• Wetted Parts: Stainless steel (303/316L), ceramic sensor, FKM (Viton) seals

• Housing Materials: Stainless steel, PC, PBT, PTFE

• Operating Temperature: –25°C to +80°C

• Storage Temperature: –40°C to +100°C

• Burst Pressure: 150 bar

• Permissible Pressure (Overload): 75 bar

• Shock Resistance: 50 g

• Vibration Resistance: 20 g

• Protection Class: IP65 (splash and dust-proof)

Pin Configuration (M12 Connector)

• Pin 1: Power supply (+V, 18–36 V DC)

• Pin 2: Analog output (voltage or current)

• Pin 3: Ground (0 V)

• Pin 4: Switching output (PNP)

 Display & User Interface

• Display Type: 4-digit LED display

• Units: Switchable between bar, MPa, and psi

• Additional Indicators: Status LEDs for switching state

• Configuration: On-device push-buttons

• User-Adjustable Parameters:

  • Set and reset points

  • Output logic (NO/NC)

  • Delay and damping

  • Display orientation and unit

  • Min/max value memory

  • Lock/unlock (password protected)
