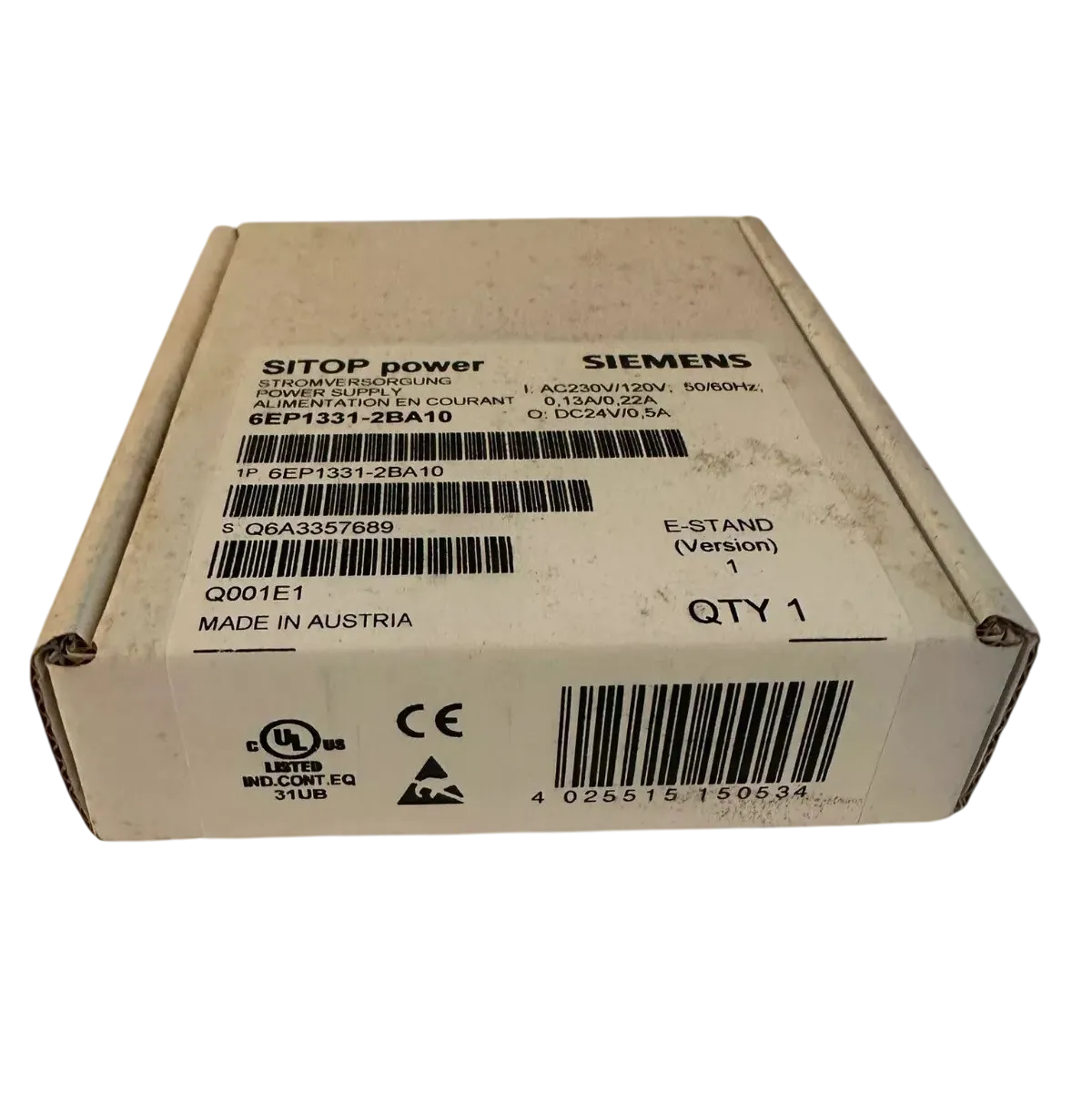

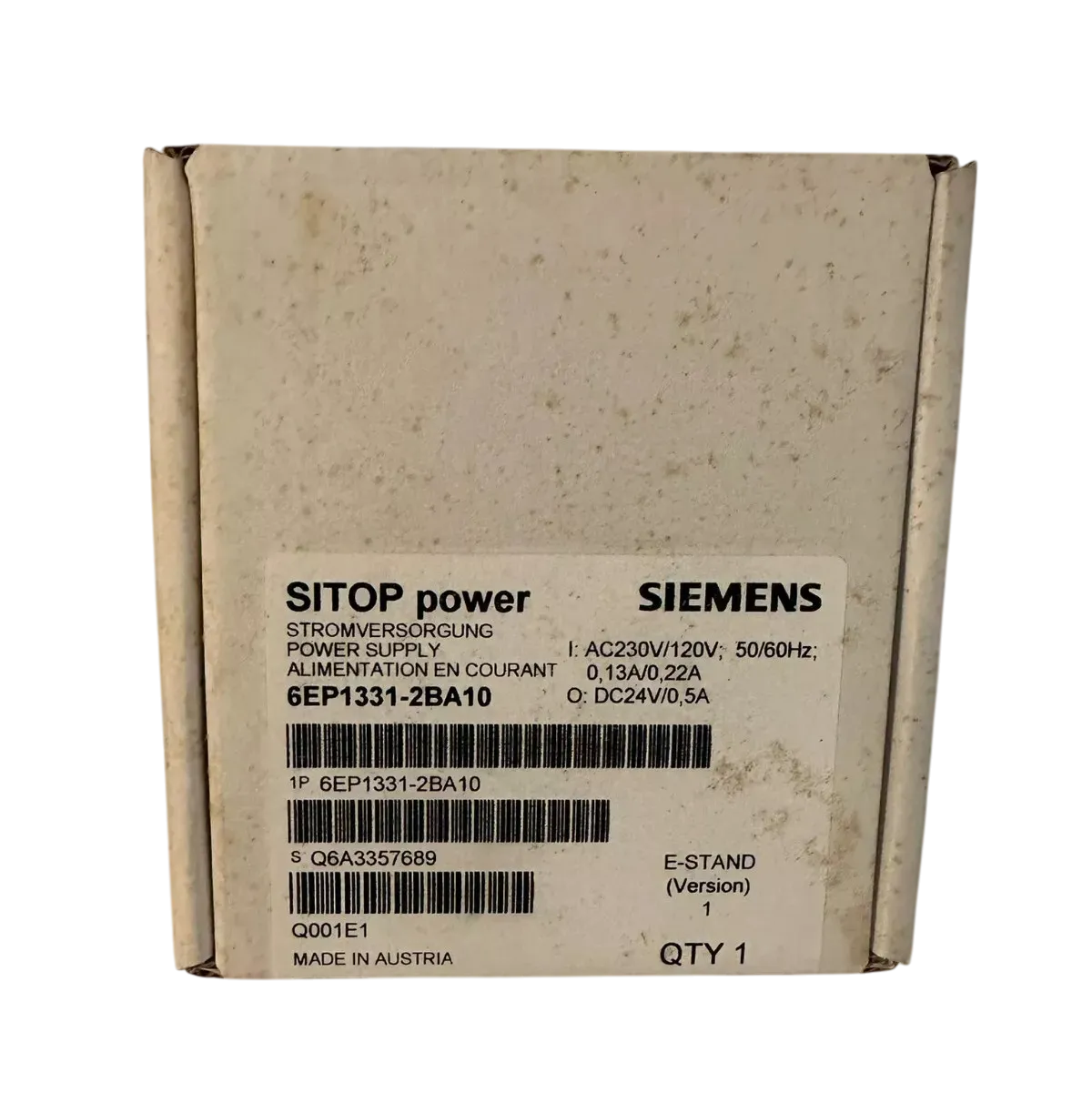

Siemens 6EP1331-2BA10

Here’s a detailed product description of the Siemens 6EP1331‑2BA10 SITOP POWER 0.5 A regulated DIN‑rail power supply:

🔌 Overview

• Model: Siemens 6EP1331‑2BA10
• Type: SITOP POWER regulated switch-mode power supply (SMPS)
• Status: Discontinued as of October 31, 2022; successor is SITOP PSU100C, 24 V/0.6 A (6EP1331‑5BA00)

⚡ Electrical Specifications

• Input Voltage:
  • AC: 120–230 V (Rated), operating range 93–264 V (47–63 Hz)
• Output:
  • Voltage: 24 V DC (±3 % static tolerance)
  • Current: 0…0.5 A (Rated)
  • Ripple & Noise: max 150 mVpp, typical 50 mVpp; spikes up to 240 mVpp
• Efficiency: ~74 % at full load

🛡 Protection & Features

• Input fuse: internal T2 A/250 V
• Short-circuit and overload protection (constant current ~0.6 A)
• LED status indicator signals “24 V OK”
• No output voltage overshoot—features soft start (~20 ms)

🌡 Environmental & Certification

• Operating ambient: –25 … +70 °C, storage: –40 … +70 °C
• Cooling via natural convection
• Protection class IP20; insulation SELV (EN 60950)
• EMC: EN 55022 Class B, EN 61000‑6‑2; safety approvals: CE, UL 508/60950; cULus

🧱 Mechanical Details

• DIN-rail 35 mm mounting (EN 60715)
• Enclosure: 22.5 mm wide × 80 mm high × 91 mm deep; weight ~0.11 kg
• Screw terminals for input (L/N/PE) and output (+/–) rated 0.5–2.5 mm² wire

📦 Additional Details

• Country of origin: Austria
• RoHS compliant (lead < 0.1 % w/w)
• Weight & package: ~0.110 kg; carton approx 10×11×3 cm

📐 Ideal Use Case

This ultra-compact, high-reliability 24 V/0.5 A SMPS is designed for control cabinets and automation systems with limited space. With reliable protections, soft-start behavior, and wide operating temperature, it’s suitable for industrial environments—though as a discontinued unit, long-term procurement would require buying remaining stock or planning migration to the PSU100C 0.6 A successor.
